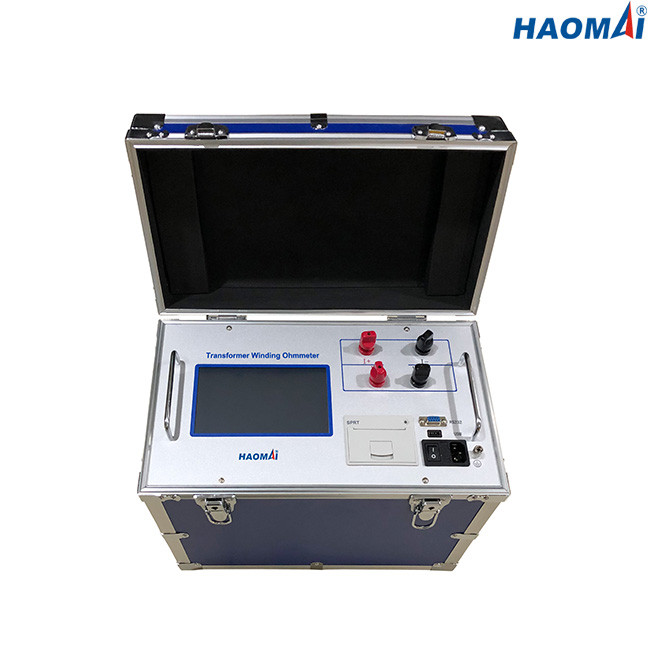

TWO-150S Transformer Winding Ohmmeter
Maximum 50A current for measuring winding resistance of power transformer

Transformer Winding Ohmmeter is designed to measure the dc resistance of all types of magnetic windings accurately. It can test transformers and rotating machine windings and perform low-current resistance measurement on connections, contacts and control circuits. TWO-150S can be operated easily via 7” high brightness touch screen.

+86 186 8208 3519 sales@haomaitest.com
  • Descriptions
  • Specifications
  • Download
  • Video
Descriptions

Transformer Winding Ohmmeter is designed to measure the dc resistance of all types of magnetic windings accurately. It can test transformers and rotating machine windings and perform low-current resistance measurement on connections, contacts and control circuits.

The main features of Transformer Winding Ohmmeter TWO-120S are as follows:

●Adopt 4-wire method for resistance measurement

●DC test current up to 50 A maximum

●7” high brightness touch screen

●User-selectable maximum current range

●Resistance measurement from 40μΩ to 20kΩ

●Able to save 1000 test results on-board

●Fast auto safety discharge circuit

●Have overcurrent, overvoltage, discharge etc. protection functions

●Able to print the test results directly via built-in printer

Specifications

DC output range: 50A, 20A, 10A, 5A, 2.5A, <20mA

Resistance measurement

40μΩ-400mΩ @ 50A

100μΩ-1Ω @ 20A

500μΩ-2Ω @ 10A

1mΩ-4Ω @ 5A

2mΩ-8Ω @ 2.5A

10Ω-20kΩ @ <20mA

Measuring accuracy: ±0.2% reading ± 2μΩ

Resolution: 0.1μΩ

7” high brightness touch screen

USB port for downloading results

Built-in printer for printing test results directly

Max. memory capacity: 1000 test results

Power supply: customized(AC220V/230V±10%, 50Hz/60Hz optional)

Dimension: 400x225x350mm(15.75x8.86x13.78 in)

Weight: 15.1kg(33.29 lb)

Environmental Conditions

storage temperature: -20~60

humidity: <90%

operating temperature: -10~50

Safety Qualifications and EMC

Safety: designed in accordance with IEC61010-1

EMC: light industrial IEC 61326



Transformer Winding Ohmmeter TWO-150S is powerful tool for measuring winding resistance of power transformer.
